Air Pollution Monitoring
Air pollution is no longer a seasonal or regional concern it’s a public health emergency, a compliance challenge, and a socioeconomic burden. At EPP, we are redefining how air quality is understood, managed, and improved through data-first environmental intelligence.
Our air monitoring systems go beyond basic AQI scores we enable multi-parameter, hyperlocal, and actionable monitoring that helps authorities, industries, and citizens take real steps toward cleaner air and regulatory alignment.
Key Challenges We Solve
Our Smart Air Offerings
Real-Time Air Quality Monitoring
EPP systems measure a wide array of pollutants and environmental variables including:
PM 1, PM2.5 & PM10
SO₂, NOx, CO, Ozone (O₃)
NH₃, H₂S, VOC, Benzene, Toluene
Temperature, Humidity, Wind Speed & Direction
Noise & Light Pollution
Our Air Monitoring Solutions
Plug & Play AQMS Devices
Advanced Real-Time Dashboards
Customizable, map-based interfaces
Live AQI tracking and forecasting
Historical trendlines, heat maps, and wind roses
Threshold Alerts & Emergency Warnings
Regulatory-Grade Compliance Reporting
Zone-Wide Mesh Networks
Why Choose EPP?
Make and Designed in India
Low-Cost, High-Fidelity AQMS
Multi-Point Deployment Strategy
Government Norms Built-In
Built for Urban, Peri-Urban & Industrial Needs
Continuous R&D for Next-Gen Sensors
Use Case
Smart City Environmental Cells
Industrial Zones & SEZs
Highway Monitoring Points
Urban Roadsides & Public Spaces
School & Hospital Zones
Our Product Specifications

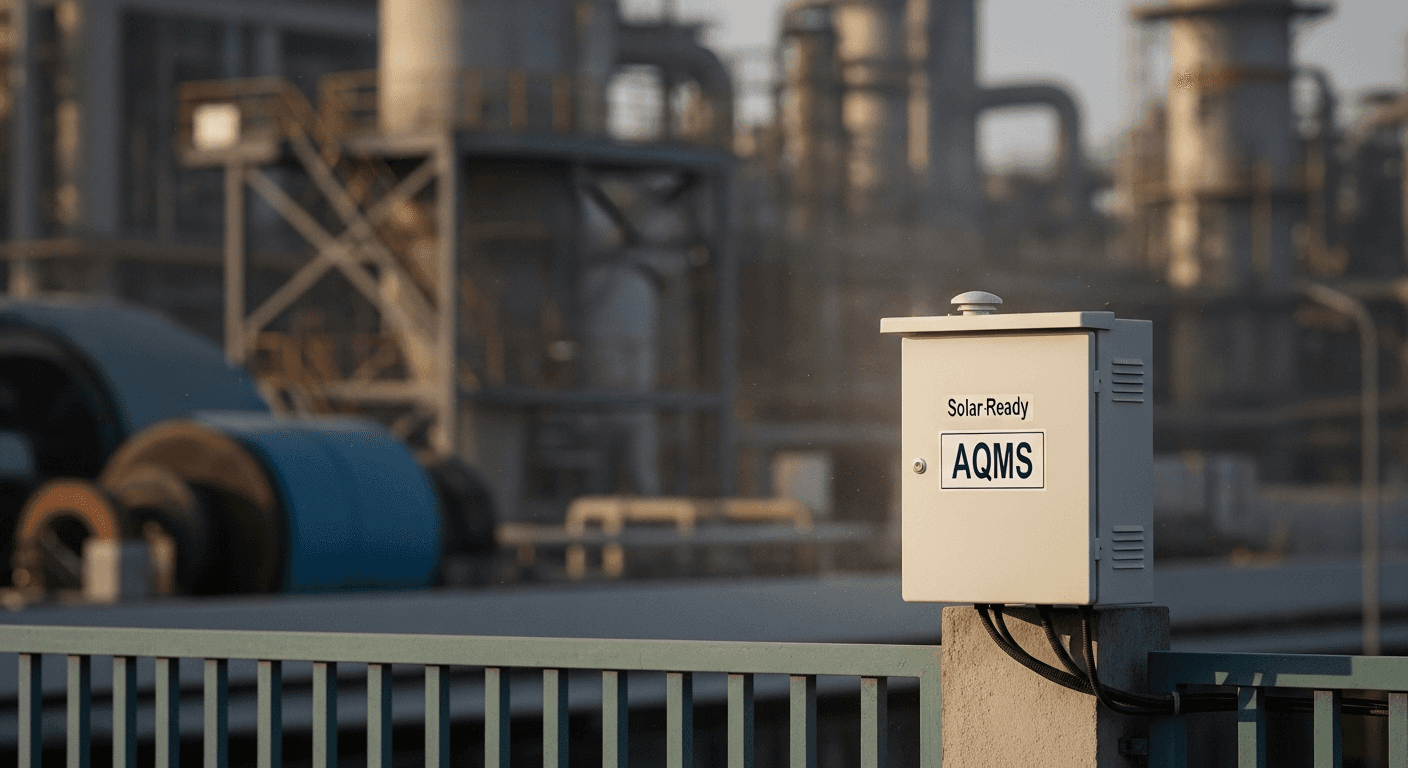

Ambient Air Quality Monitoring System – Prakrit
PRAKRIT’s AQMS is an advanced, fully customizable solution developed through extensive R&D, offering high-fidelity air quality analysis for environmental and industrial applications.
Key Features:
Continuous real-time monitoring of PM10, PM2.5, SO₂, NO₂, CO, H₂S, and more.
Multiple communication modes: GSM / WiFi / LAN.
Compact, powder-coated MS enclosure with IP67 protection.
User-friendly interface and low-maintenance design.
Remote data access and expert calibration support.
Technical Specifications
Dimensions
300 x 400 x 150 mm
Operating Temp
-20°C to 60°C
Battery
Lithium-Ion
Ingress Protection
IP67
Communication
GSM / Wi-Fi / LAN
Applications
Chemical and petrochemical plants, solvent industries, indoor air quality, process emission monitoring, landfill gas surveillance, and CPCB/SPCB compliance.

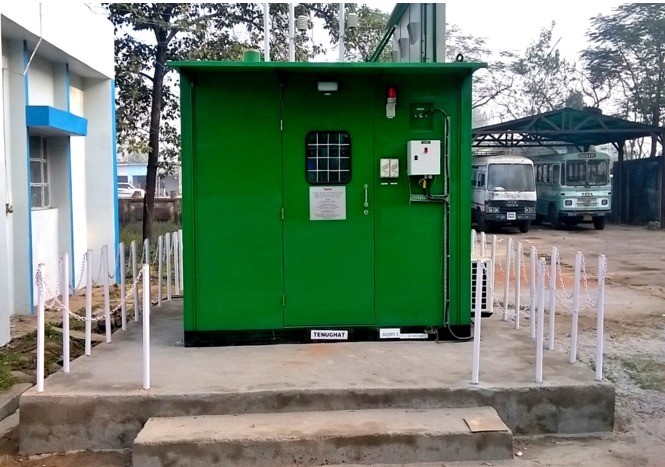

CAAQMS – Prakrit
A robust, industrial-grade ambient air quality monitoring station using advanced gas analyzers and meteorological sensors, built for long-term deployment and compliance with national air quality standards.
Key Features:
Monitors key pollutants: PM2.5, PM10, NO, NO₂, NOx, SO₂, CO, O₃, NH₃, H₂S.
Meteorological sensors for wind speed, wind direction, temperature, humidity, rainfall.
Real-time data transmission via GPRS/Ethernet/RS485.
Auto calibration (zero/span), diagnostics & remote maintenance support.
Modular design with plug-and-play capability.
Meets NAAQS, CPCB, and CAAQM guidelines
Technical Specifications
Material
All-weather powder-coated stainless steel enclosure
Type
Ground-mounted or skid-based container setup
Protection
IP65/IP66 certified instrument shelters
Display
Web-based dashboard + local display (optional)
Weight
~300–400 kg (modular)
Dimensions
Customizable (based on container/rack)
Sensor Ranges
PM2.5 / PM10
0–1000 µg/m³ (±1 µg/m³)
NO, NO₂, NOx, SO₂, CO, O₃
As per USEPA/BAM-certified sensor standards
Temperature
-40°C to +80°C
Wind Speed
0–60 m/s
Humidity
0–100% RH
Applications
Urban air quality monitoring, industrial perimeter surveillance, Smart Cities, Environmental Impact Assessments, compliance with CPCB, SPCBs, and ISO 14001 audits.

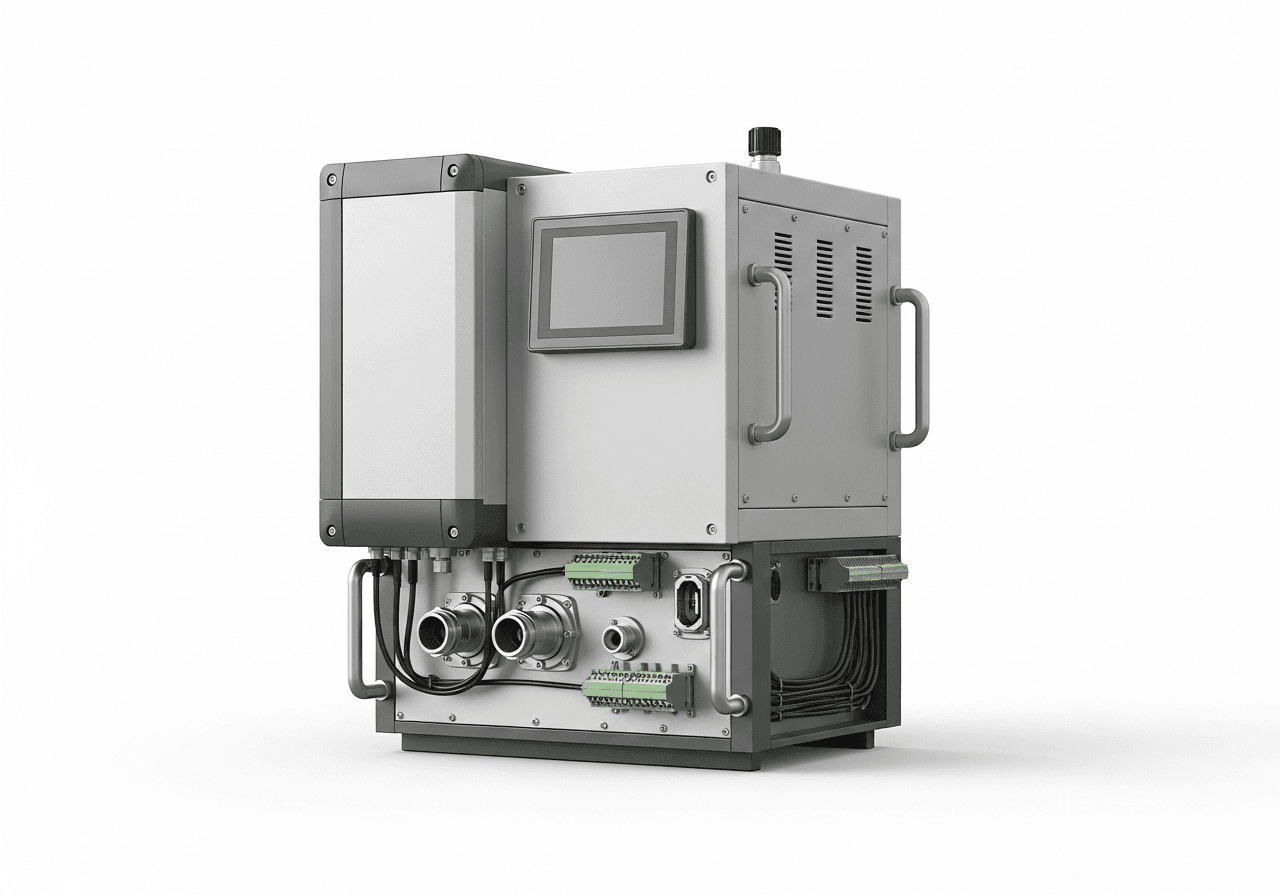

CEMS – Prakrit
A rugged, high-accuracy Continuous Emissions Monitoring System designed for stack emission compliance. Integrated with NDIR and UV-based gas analyzers for real-time monitoring of critical air pollutants from industrial exhaust.
Key Features:
Measures SO₂, NOx, CO, CO₂, O₂, NH₃, HCl, HF, and more.
Opacity and dust monitoring using triboelectric or optical sensors.
Automatic calibration (zero/span) and blowback cleaning.
Real-time RS485/Ethernet/4G communication.
Heated sampling probe and line to prevent condensation.
Fully compliant with CPCB guidelines and emission norms
Technical Specifications
Material
Mild Steel with powder coating or stainless steel (optional)
Type
Rack-mounted or wall-mounted analyzer cabinet
Protection
IP54 to IP65 based on site conditions
Display
7” touchscreen HMI panel or web-based dashboard
Weight
80–120 kg (varies by configuration)
Dimensions
Approx. 1000 x 600 x 500 mm (customizable)
Sensor Ranges
SO₂, NOx, CO, CO₂, NH₃, etc
0–2000 mg/Nm³ (customizable)
O₂
0–25% vol (paramagnetic or electrochemical)
Dust
0–1000 mg/Nm³
Operating Temp
-10°C to +50°C
Applications
Thermal power plants, cement factories, steel and glass industries, incineration plants, compliance with CPCB, SPCB, and EMS reporting norms.
Applications
Chemical and petrochemical plants, solvent industries, indoor air quality, process emission monitoring, landfill gas surveillance, and CPCB/SPCB compliance.

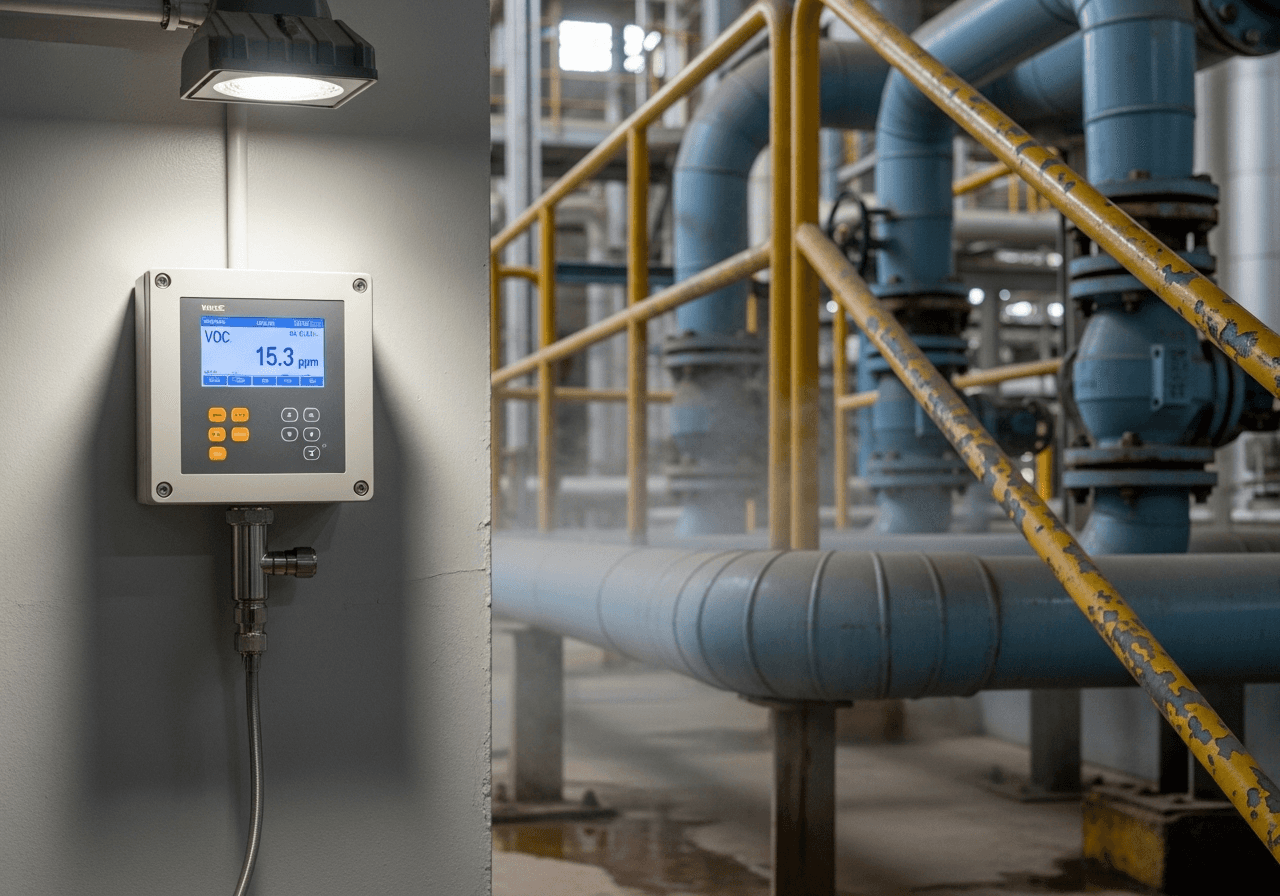

VOC Analyzer – Prakrit
A sensitive, real-time Volatile Organic Compounds (VOC) monitoring system using advanced Photoionization Detection (PID) technology. Designed for indoor, industrial, and ambient air applications requiring accurate trace-level detection.
Key Features:
Detects a wide range of VOCs: BTEX, hydrocarbons, solvents, and organic vapors.
High-sensitivity PID sensor with rapid response and recovery.
Real-time monitoring with configurable threshold alerts.
Long-life sensor with automatic zero correction.
Data communication via RS485/4G/Wi-Fi/Ethernet.
Wall-mount or pole-mount design for flexible deployment.
Technical Specifications
Material
Powder-coated aluminum or mild steel enclosure
Type
Wall-mounted or pole-mounted outdoor unit
Protection
IP65 certified for outdoor use
Display
2.8” LCD screen (optional) + Web-based dashboard
Weight
~8–10 kg
Dimensions
300 x 250 x 150 mm
Sensor Ranges
VOC Range
0–20 ppm / 0–200 ppm / 0–2000 ppm (configurable)
Resolution
0.01 ppm
Accuracy
±2% of reading
Operating Temp
-10°C to +60°C
Humidity Range
0–95% RH (non-condensing)
Applications
Chemical and petrochemical plants, solvent industries, indoor air quality, process emission monitoring, landfill gas surveillance, and CPCB/SPCB compliance.
Let’s Clear the Air, Together
EPP helps you turn data into accountability and accountability into impact. Let’s build air-intelligent cities and industries with tools that inform, engage, and empower.
