Drinking Water & Wastewater Management
Access to clean and safe water is not just a utility it's a human right and a cornerstone of national development. At Electro Plaza Projects (EPP), we champion smart water infrastructure that enables every community, enterprise, and governing body to ensure safe, efficient, and accountable water supply and sanitation.
As climate risks grow and traditional systems age, EPP’s IoT-driven water platforms deliver a future-proof solution combining real-time monitoring, predictive maintenance, and end-to-end digital visibility across drinking water and wastewater ecosystems.
Key Challenges We Solve
Our Smart Water Offerings
BIS 10500-Compliant Real-Time Water Quality Monitoring
The data is directly transmitted to cloud dashboards with automatic compliance scoring.
Our sensors continuously track key water quality indicators like:
pH
Turbidity
TDS (Total Dissolved Solids)
Chlorine levels
BOD
COD
Fluoride
Conductivity
Temperature

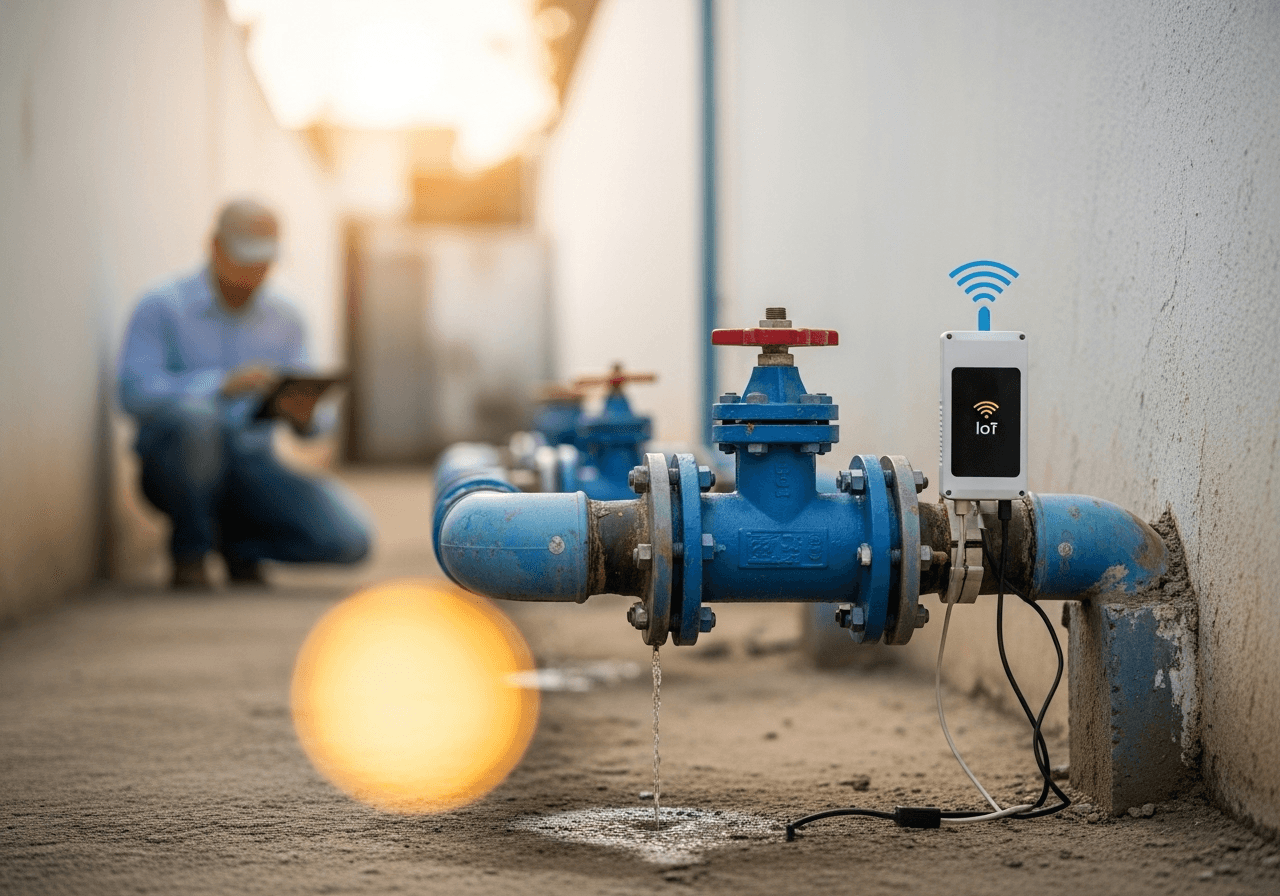

Contamination & Leakage Detection with Instant Alerts
Our IoT-powered anomaly engine detects :
Pipeline corrosion
Backflow contamination
Leakages from joints or valves
Tampering or unauthorized diversion
Users are instantly alerted via SMS, email, or app for rapid mitigation.

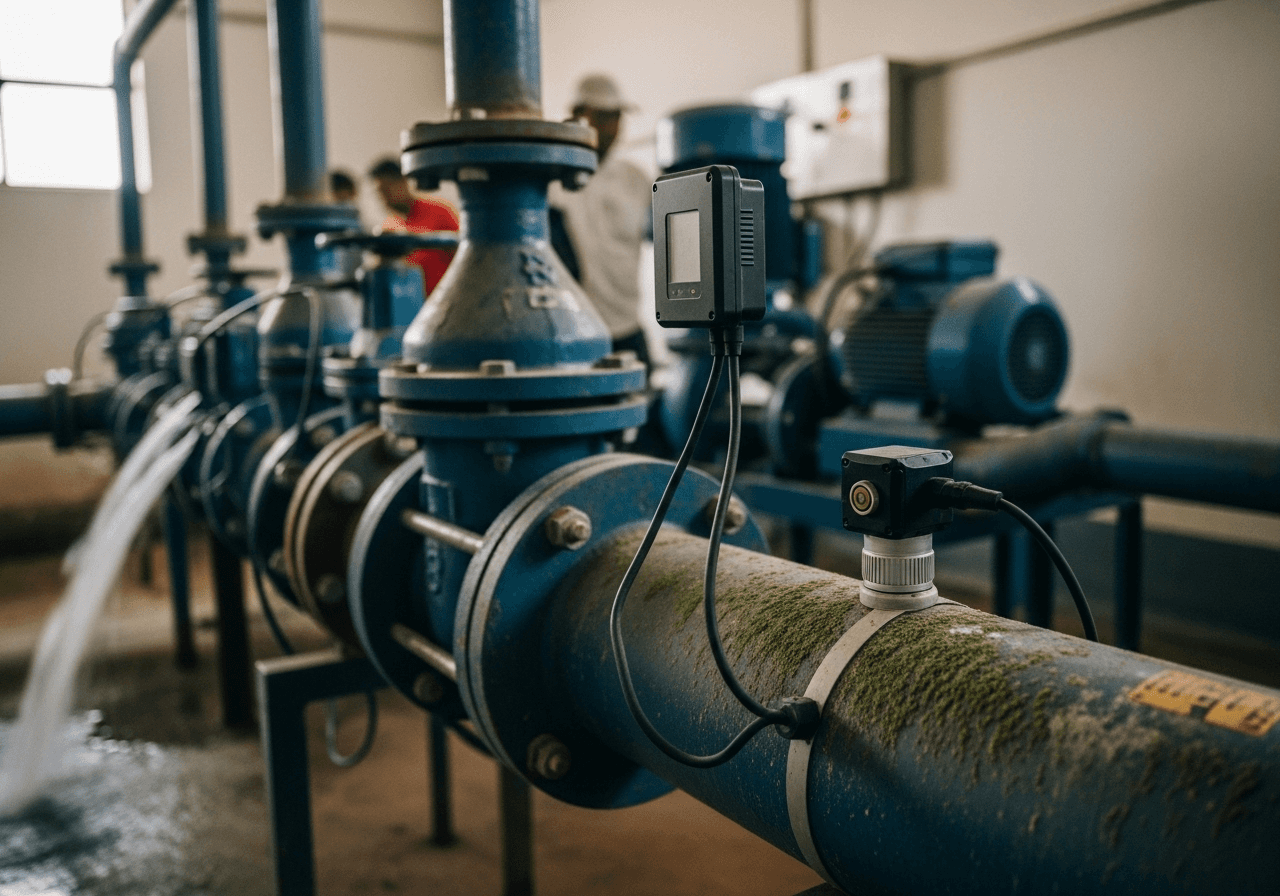

Pump, Valve & Infrastructure Health Monitoring
Through advanced pressure, vibration, and flow sensors, we track:
Pump motor condition
Reservoir tank levels
Inlet/outlet flow rates
Valve actuation frequency
This enables predictive maintenance and helps avoid costly shutdowns.
Swan Court: Our Smart Analytics Dashboard
Our proprietary platform enables
Users are instantly alerted via SMS, email, or app for rapid mitigation.
Water Journey
Source-to-Tap Flow Visibility
We map the entire water journey:
01
Raw Source
02
Treatment
03
Storage
04
Distribution
05
End User
Platform Integration with National Missions
Our systems are ready to plug into
Jal Jeevan Mission (JJM)
AMRUT 2.0
Smart Cities Dashboards
e-Governance Water Portals
Municipal SCADA & GIS Systems
Why Choose EPP?
Make and Designed in India
Govt-Certified & Mission-Aligned Solutions
Modular, Scalable & Cloud-Ready Architecture
Built-In Compliance with BIS 10500, WHO, CPCB
Proven in Diverse Urban, Rural, and Industrial Environments
24x7 Tech Support and Training Enablement
Use Case
Rural Drinking Water Pipelines
Urban Utility Boards
Industrial RO & ETP Plants
Smart Cities Command Centres
Disaster Relief Water Distribution
Rain Water Harvesting
Our Product Specifications

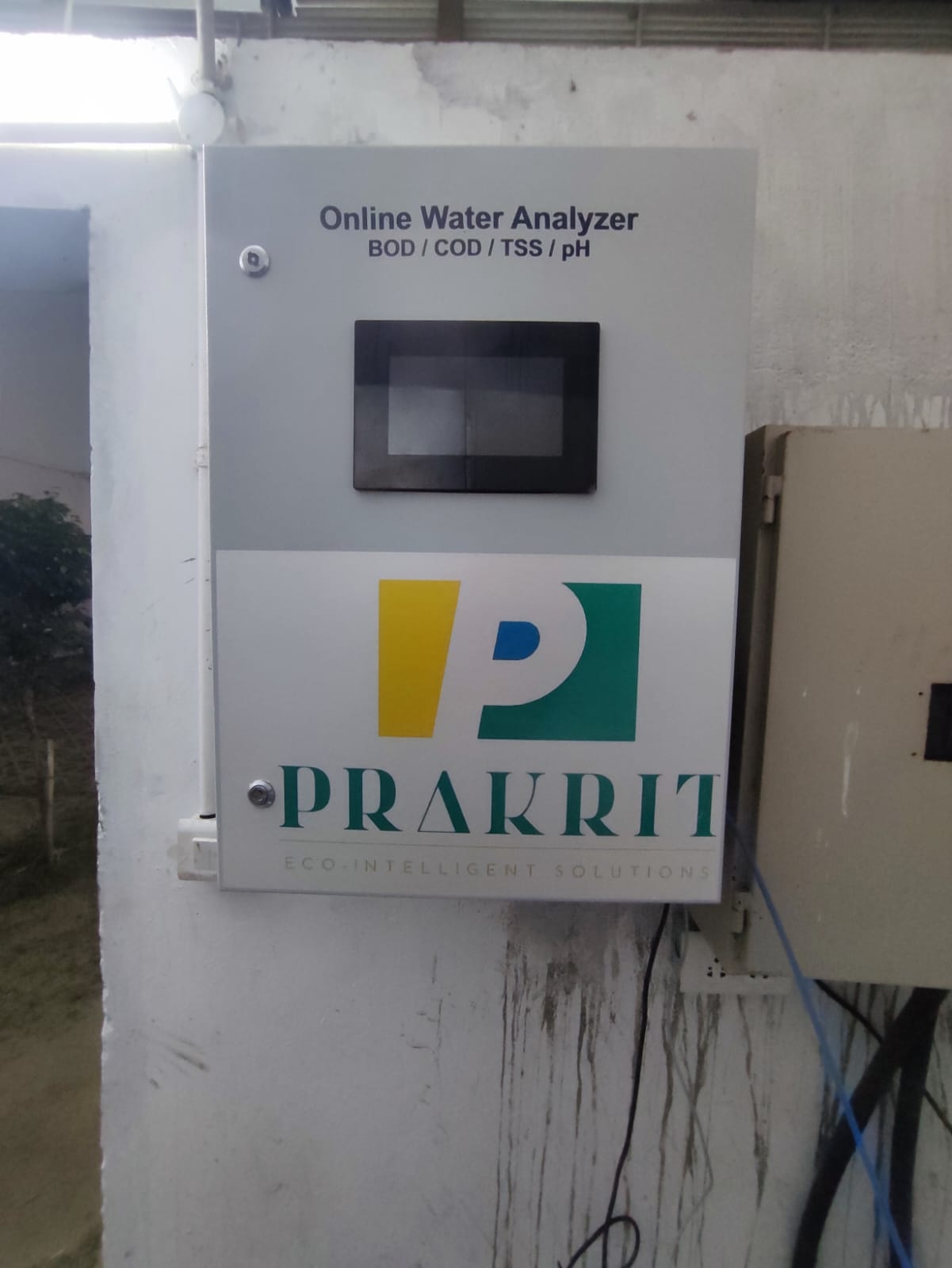

Water Quality Analyzer – Prakrit
A compact, high-precision online water analyzer integrating UV-Visible Spectroscopy and Amperometry to deliver real-time, maintenance-light operation.
Key Features:
Measures BOD, COD, TSS, pH, chlorine, conductivity.
Auto-zero calibration and automatic cleaning system.
Long-lifetime optical lamp, suitable for industrial use.
Real-time RS485 analog output with large data storage.
TFT color screen display with automatic sleep mode
Technical Specifications
Material
Mild Steel
with powder coating
Type
Wall-mounted
Protection
IP65
Display
7” TFT color screen
Weight
30 kg
Dimensions
700 x 500 x 250 mm
Sensor Ranges
TDS
0–20 g/L | DO: 0–20 mg/L (±3%)
pH
0–14 | Operating Temp: -20°C to 80°C
Applications
RO/ETP plants, process industries, compliance with JJM, CPCB, BIS norms
Piezometer – Prakrit
A robust and compact digital groundwater level monitoring system for real-time aquifer health assessment and reporting. Ideal for industries under CGWA regulation.
Key Features:
Monitors static and dynamic water levels continuously
Pressure transducer-based system with high accuracy
Solar-powered with battery backup for remote deployment
Data transmission via GSM/GPRS/LoRa
Tamper-proof housing with IP68 sensor protection
Compatible with CGWA, Jal Shakti, and SPCB formats
Technical Specifications
Material
Stainless steel probe with weatherproof control unit
Type
Borewell submersible with above-ground logger
Protection
IP68 (sensor), IP65 (data logger unit)
Display
Web-based portal/dashboard
Weight
~10 kg
Dimensions
Probe length customizable; logger ~300 x 200 x 100 mm
Sensor Ranges
Water Level Range
0–100 m (customizable)
Accuracy
±0.1% of Full Scale
Operating Temp
-10°C to +60°C
Power
12V DC (solar or external)
Applications
Groundwater monitoring for industrial compliance, rainwater harvesting validation, aquifer study, and integration with CGWA/NOC compliance portals.
Let’s Build a Water-Secure Future
Whether you’re a government agency, EPC partner, or private institution EPP enables you to digitize water quality, optimize operations, and restore public trust in every drop delivered.
